The REFFLEX® assortment
The REFFLEX® assortment consists of individual components and tools for DN-2.0 and DN-5.0 to fabricate hoses to your requirements yourself and also fabricated hoses in DN-2.0, DN-5.0 and DN-5.0 CO2 Transcritical.

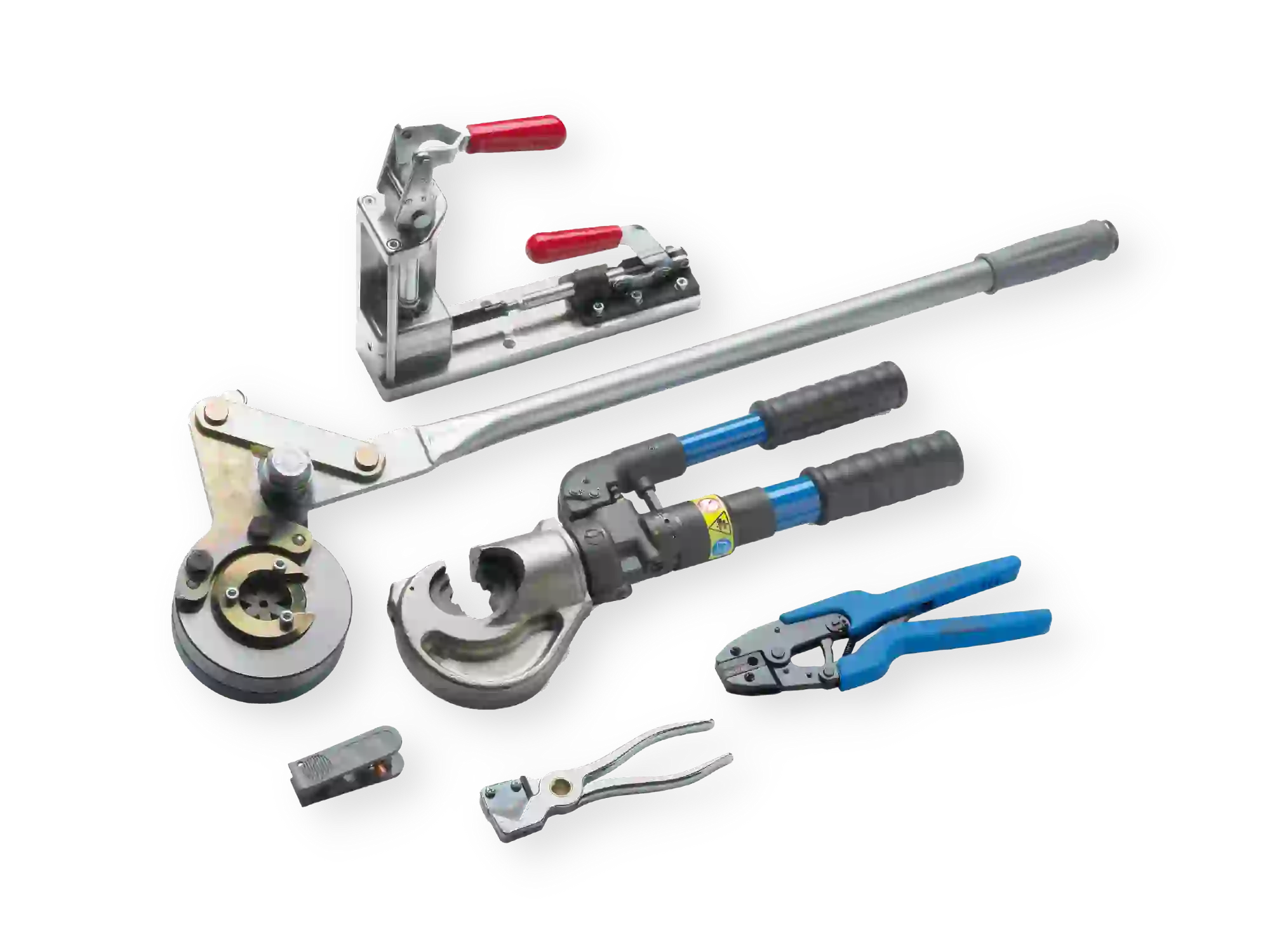

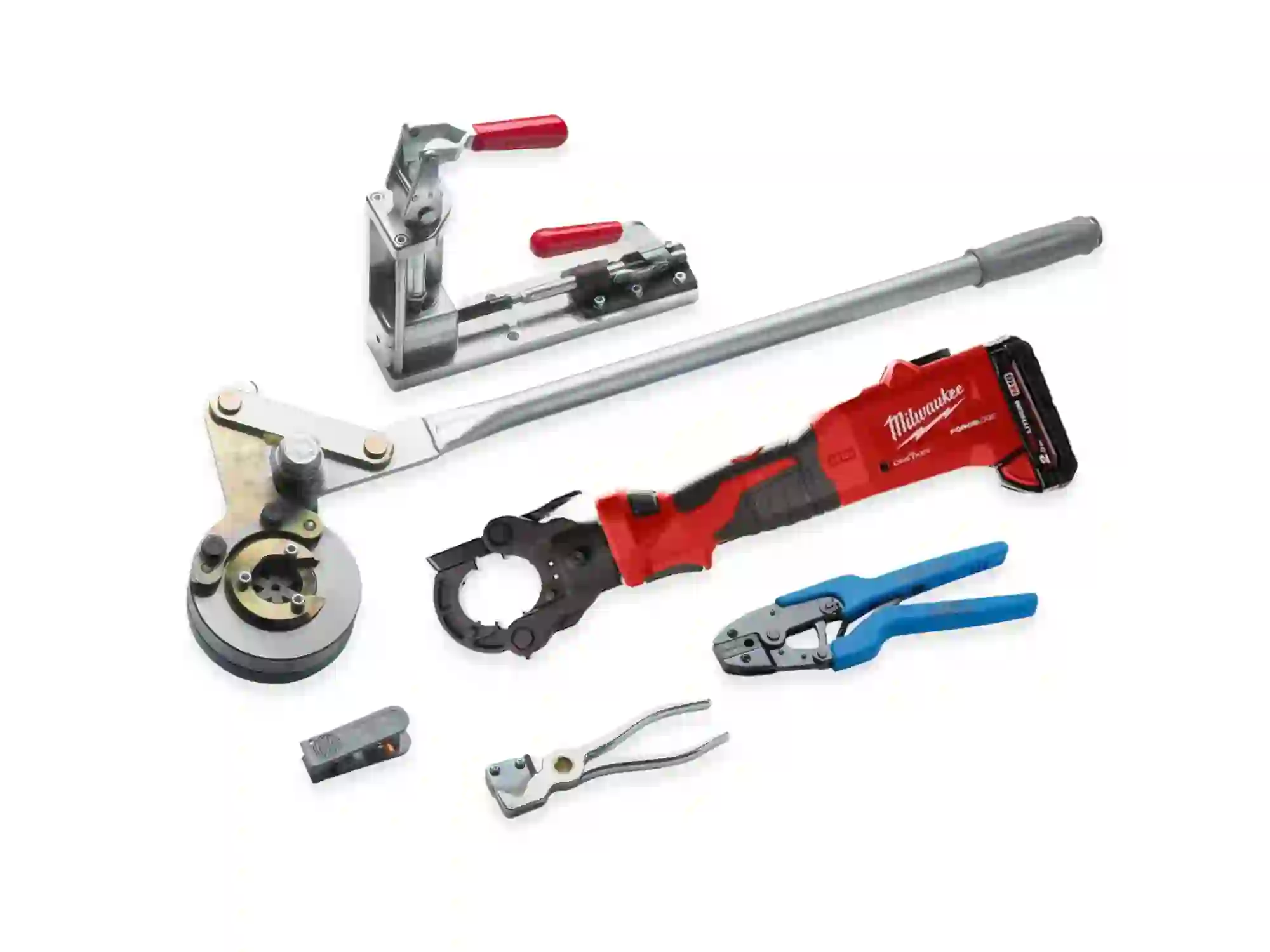

REFFLEX® components and tools
REFFLEX® provides a wide range of products, from pre-fabricated hose made to specifications, to all items required for on site production:

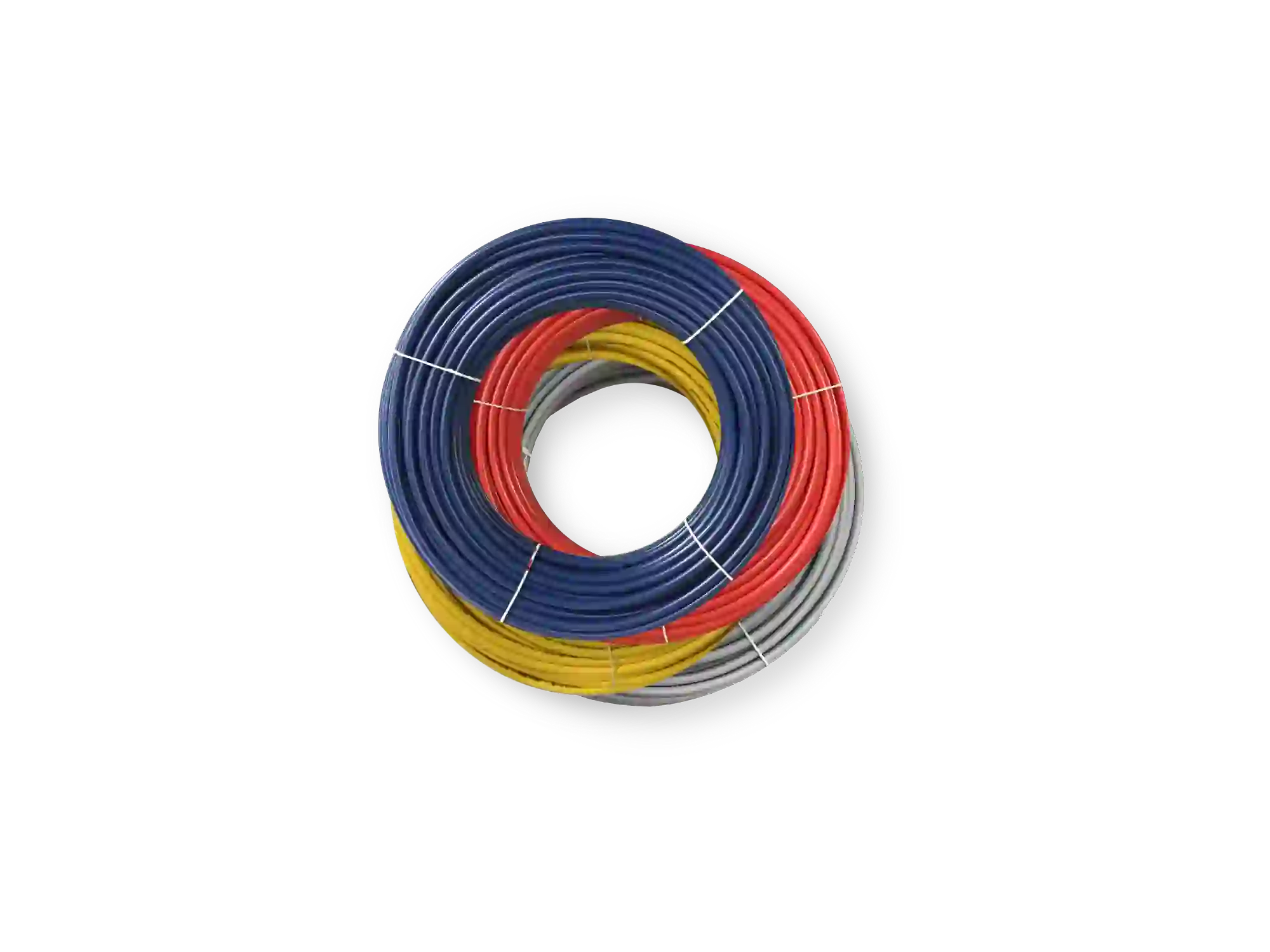

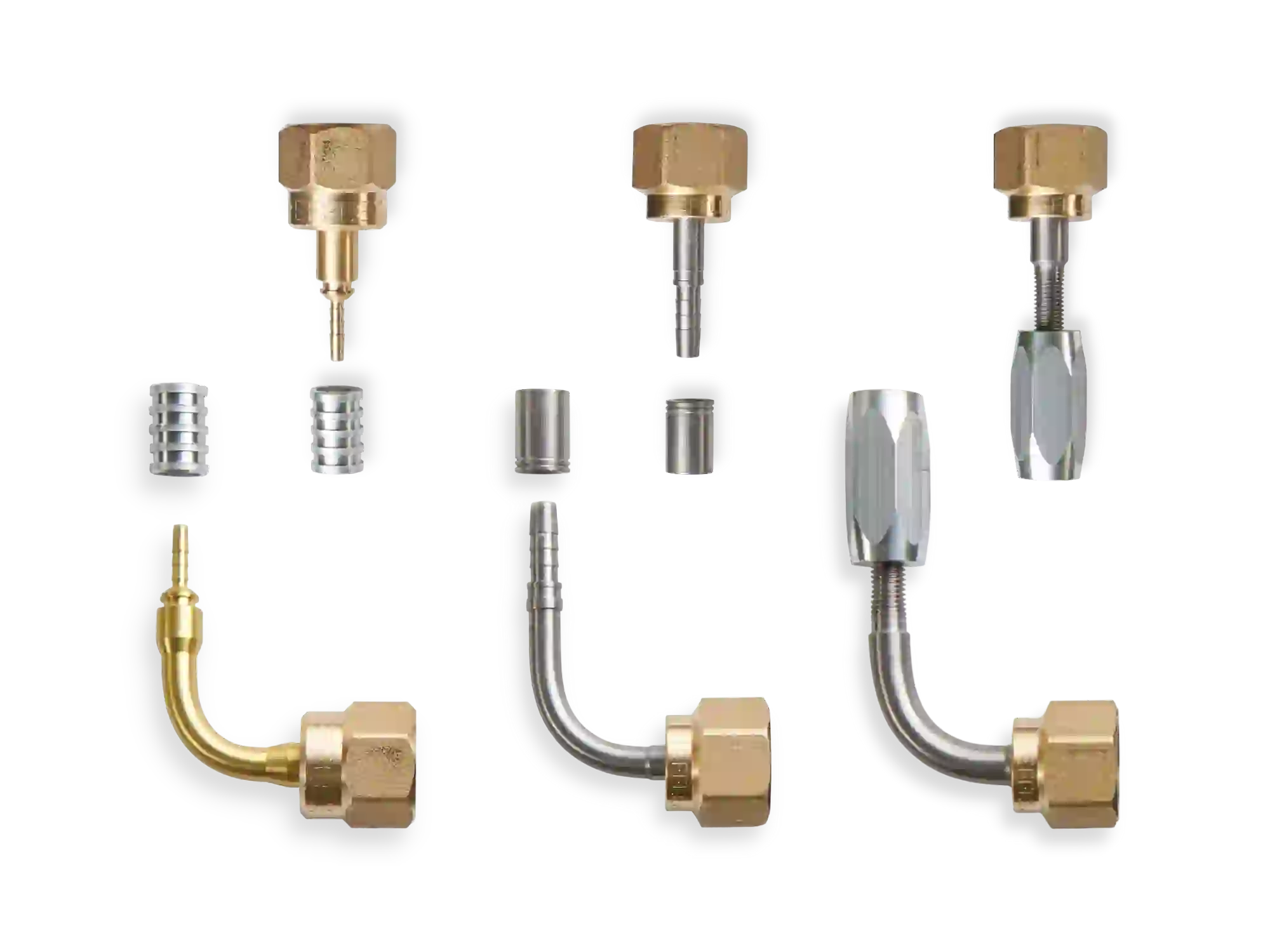

flexible tubes in DN-2.0 and DN-5.0, various fittings and required tools.
With REFFLEX®, your refigeration or heat pump system is compliant with EN378 and DIN8975 (DN-5.0) and you simplify the connection of:
- Pressure switches
- Pressure transducers
- Manometers
- Water flow controls
- Fan speed controls
- Oil separators and level regulators (DN-5.0)
REFFLEX® products comply with EN1736 and ISO9223 and are UL recognized.
Technical specifications
Operation temperature
-40°C/115°C
Max working pressure
80 bar
Bending radius DN-2.0
50mm
Burst pressure DN-2.0
> 700 bar
Bending radius DN-5.0
100mm
Burst pressure DN-5.0
> 500 bar
EN1736 permeability
Class 1 at 100°C and 130 bar
Refrigerants
HFC/HFO, HC and CO2-Sub
ozone-, UV-, and oil resistant
yes

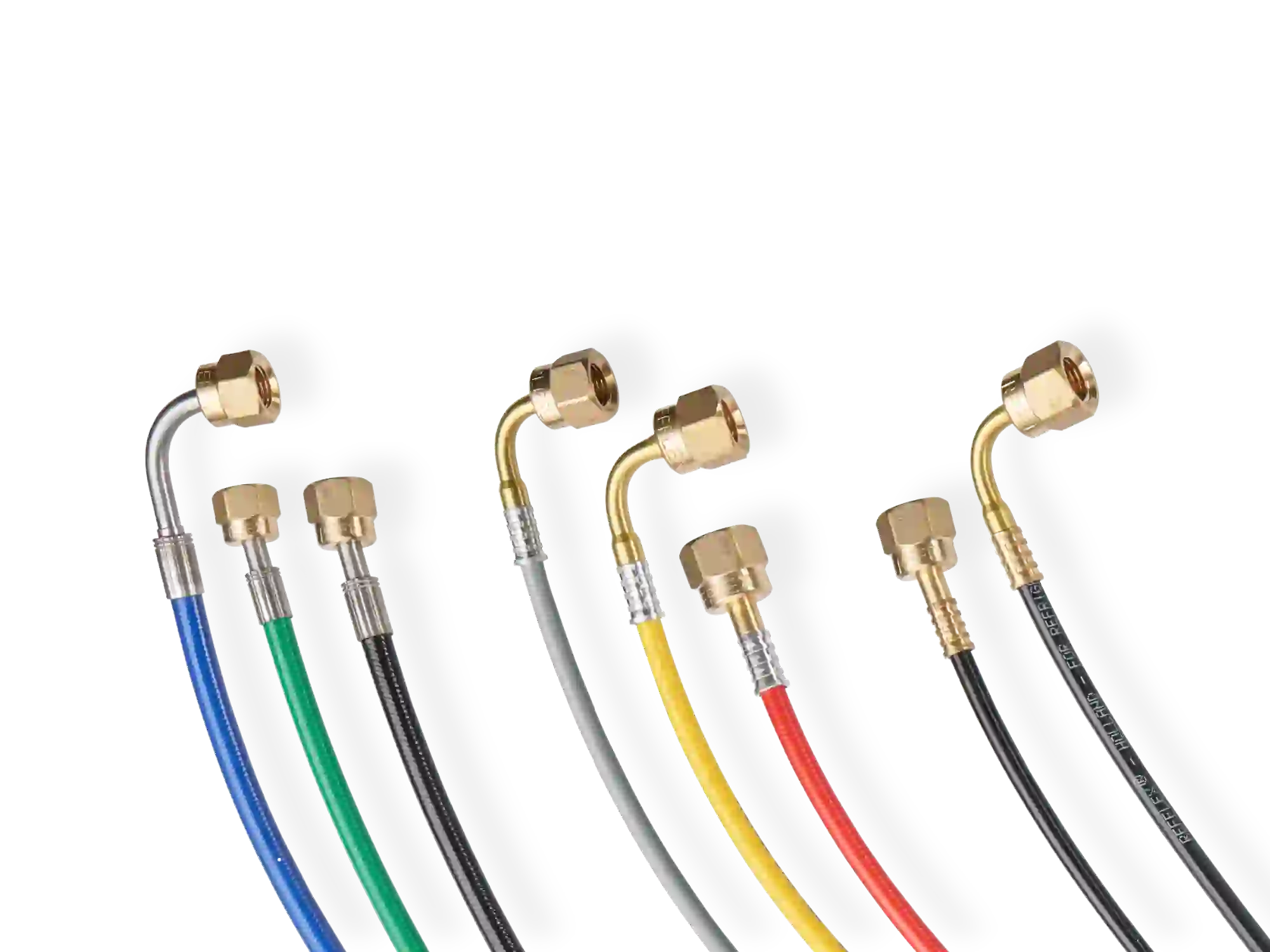

REFFLEX® fabricated solutions
Technical specifications
Operation temperature DN-5.0 CO2-T
-40°C/140°C
Max working pressure DN-5.0 CO2-T
140 bar
Burst pressure DN-5.0 CO2-T
> 900 bar
Bending radius DN-5.0 CO2-T
200mm
EN1736 permeability
Class 1 at 100°C and 130 bar
Refrigerants
HFC/HFO, HC, NH3 and CO2-Transcritical
ozone-, UV-, and oil resistant
yes
