REFFLEX® DN-8.0 Fabricated hoses

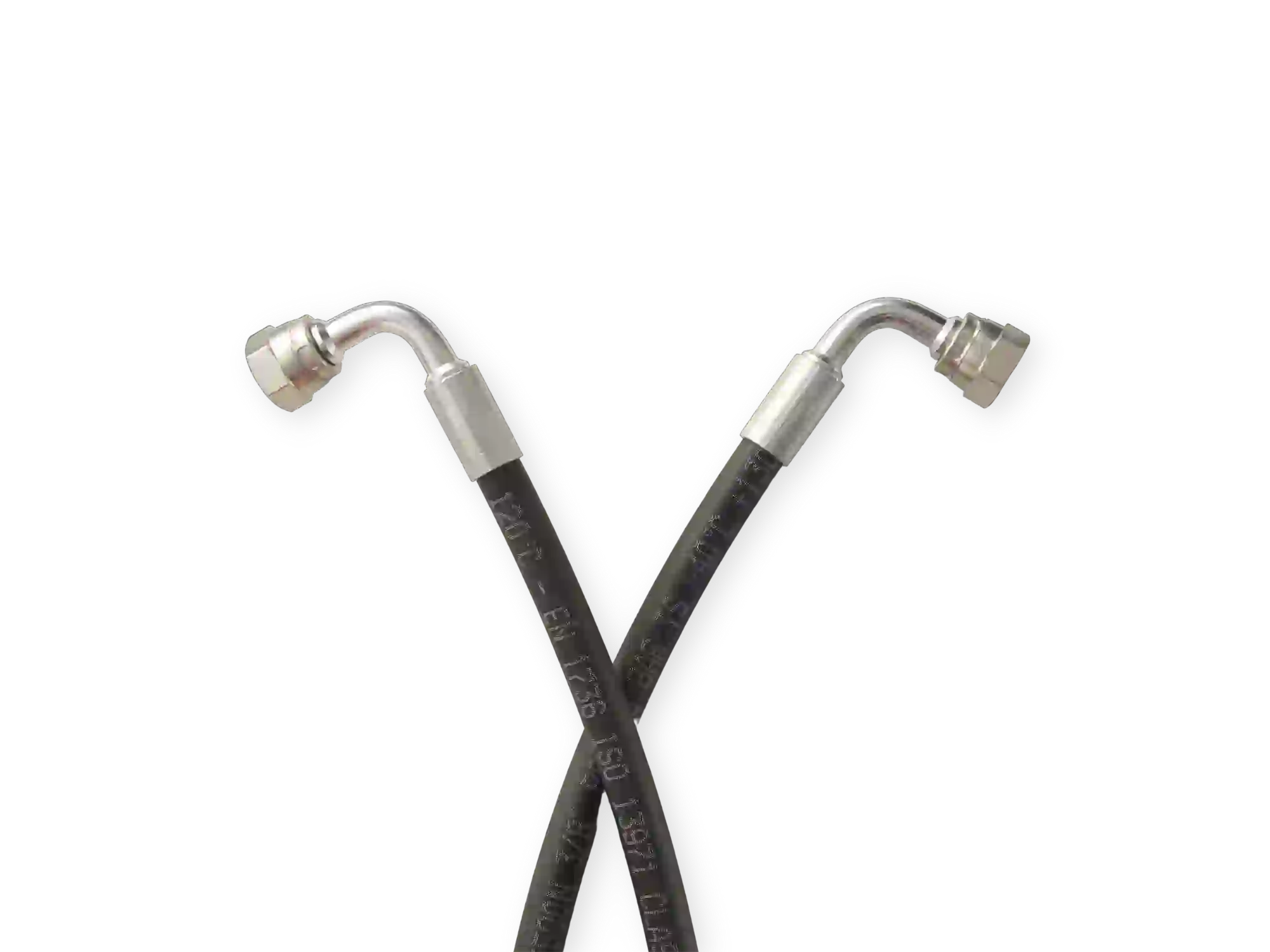

REFFLEX DN-8.0 Fabricated hose
REFFLEX DN-8.0 Fabricated hose

DN-8.0 Fabricated hoses

DN-8.0 tube: 8.1 x 14.1 mm (inner - outer diameter)

Available 3/8" Stainless steel fittings:

  • R/R: Straight-Straight
  • H/R: 90° Angle-Straight
  • H/H: 90° Angle-90° Angle





Technical specifications

Operation temperature -40°C/120°C
Max working pressure 120 bar
Burst pressure DN-8.0 > 400 bar
Bending radius DN-8.0 250mm
EN1736 permeability Class 1 at 100°C and 130 bar
Refrigerants HFC/HFO, HC and CO2 (Sub)
ozone-, UV-, and oil resistant yes
