Stock fabricated hoses
The following standard lengths of fabricated hoses in are always stock.
DN-2.0 standard fabricated hoses

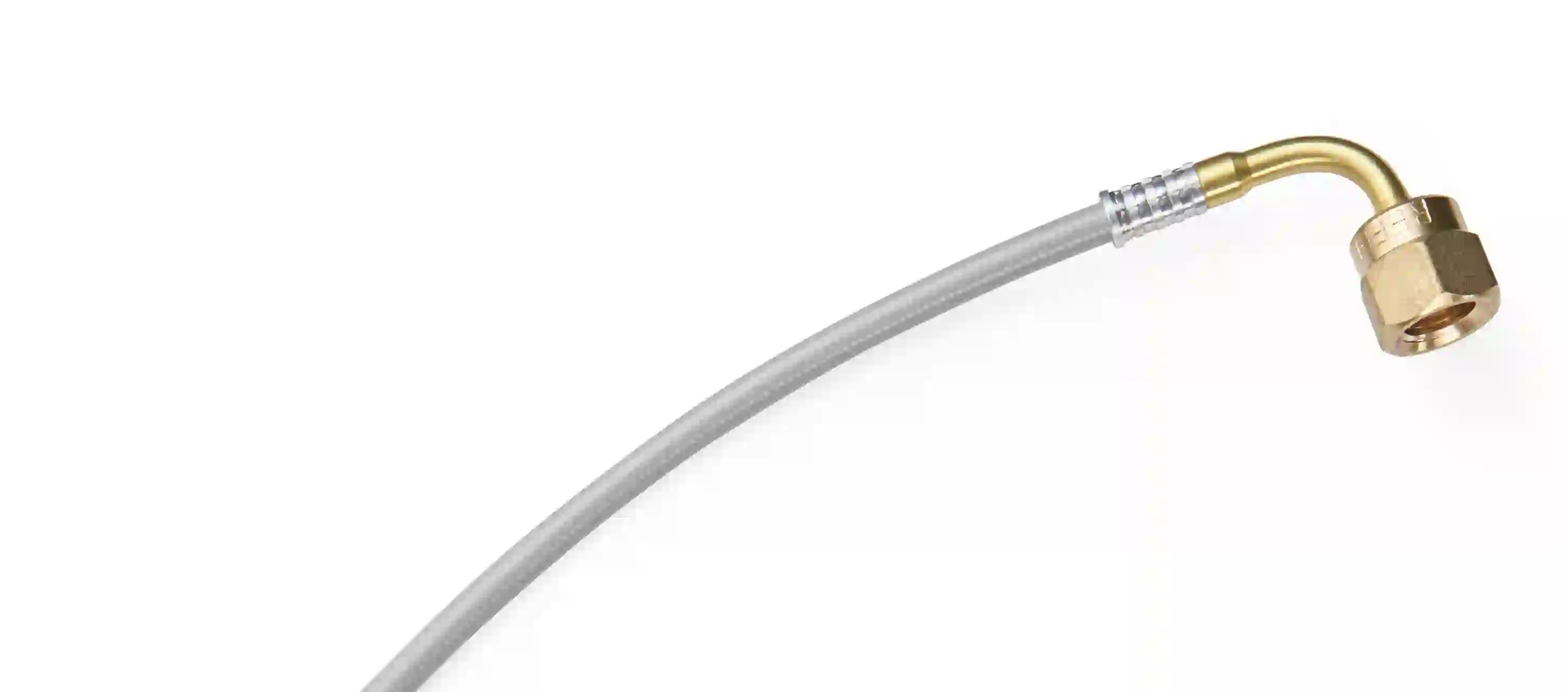

Hose colour grey, aluminum crimp with brass fittings (200633: angle 90° and 200631: straight) with hot forged brass nut.
| Article number | Description | Fitting 1 | Fitting 2 |
| 200690 | DN-2.0 hose 0.40m 1/4" | angle 90° | straight |
| 200657 | DN-2.0 hose 0.50m 1/4" | angle 90° | straight |
| 200670 | DN-2.0 hose 0.75m 1/4" | angle 90° | straight |
| 200672 | DN-2.0 hose 1.00m 1/4" | angle 90° | straight |
| 200664 | DN-2.0 hose 1.25m 1/4" | angle 90° | straight |
DN-5.0 standard fabricated hoses

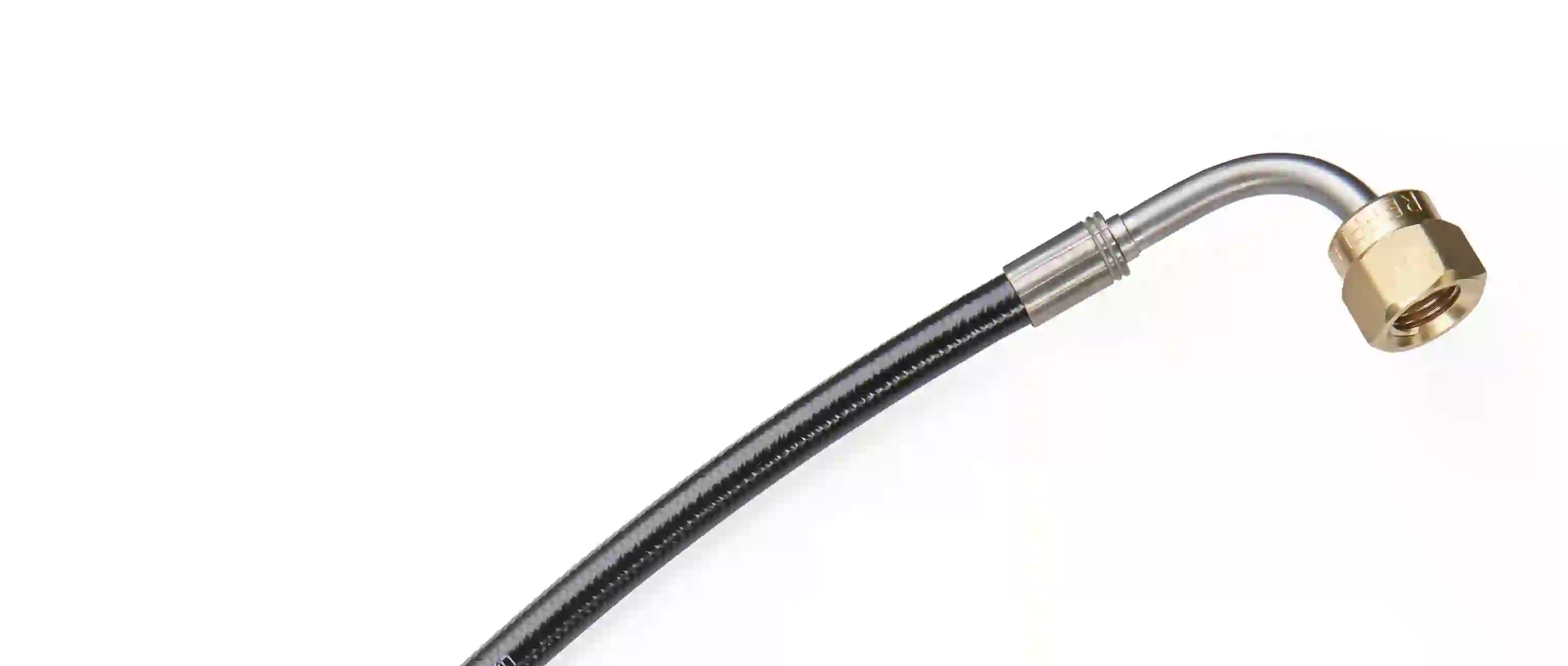

Hose colour black, stainless 303 crimp and fitting (200646: angle 90° and 200645: straight) with hot forged brass nut.
| Article number | Description | Fitting 1 | Fitting 2 |
| 200722 | DN-5.0 hose 0.40m 1/4" | angle 90° | straight |
| 200726 | DN-5.0 hose 0.50m 1/4" | angle 90° | straight |
| 200731 | DN-5.0 hose 0.75m 1/4" | angle 90° | straight |
| 200713 | DN-5.0 hose 1.00m 1/4" | angle 90° | straight |
| 200720 | DN-5.0 hose 1.50m 1/4" | angle 90° | straight |
