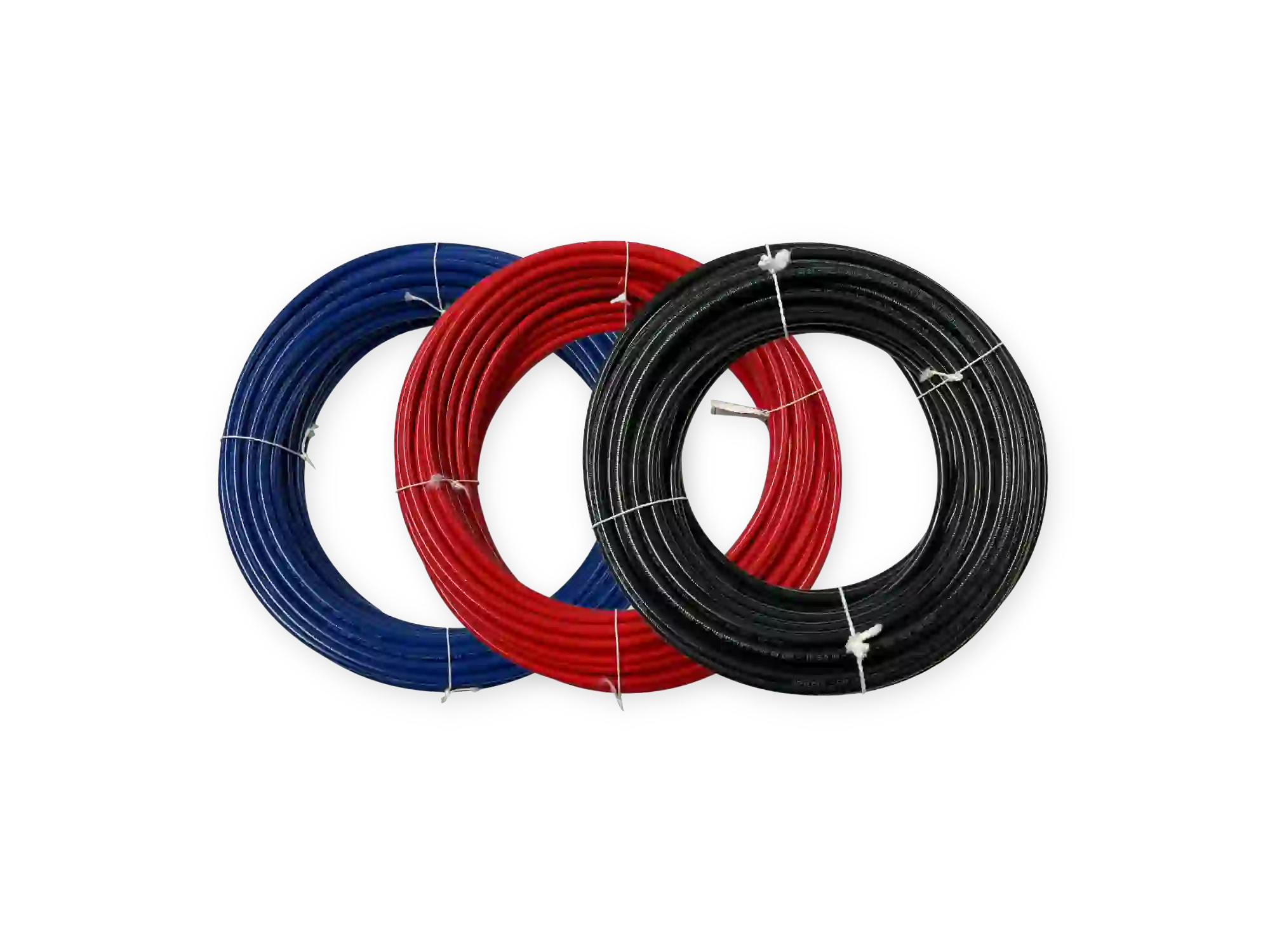

REFFLEX® DN-5.0 flexible tube
Flexible tube: 8.0 x 5.0 mm
Coil of 25 meter (standard) or 500 meter for OEM serial production purposes
Check the suitable REFFLEX® DN-5.0 crimp fittings or screw fittings for applicable connections.
DN-5.0 tube
| Article | Colour |
| 201648 | Black (standard) |
| 203648 | Blue |
| 208648 | Red |
Technical specifications
Operation temperature
-40°C/115°C
Max working pressure
80 bar
Burst pressure DN-5.0
> 500 bar
Bending radius DN-5.0
100mm
EN1736 permeability
Class 1 at 100°C and 130 bar
Refrigerants
HFC/HFO, HC and CO2-Sub
ozone-, UV-, and oil resistant
EN1736 compliant
Our hoses have been tested by Instituto Giordano, Italy, and found compliant with EN1736:2009 norm which regulates the requirements of:
- pressure strength
- burst pressure
- fatigue resistance
- permeability rate
of non-metallic tubes used in air conditioning and refrigerating systems, including heat pumps.
